Control Times Measuring Bridge for 18K4F Engines

Required reading for everyone operating a 1.8K4(x) engine with adjustable camshaft sprockets in their Lotus or Rover.
The tool is based on a suggestion by Dave Andrews (dvapower.co.uk)

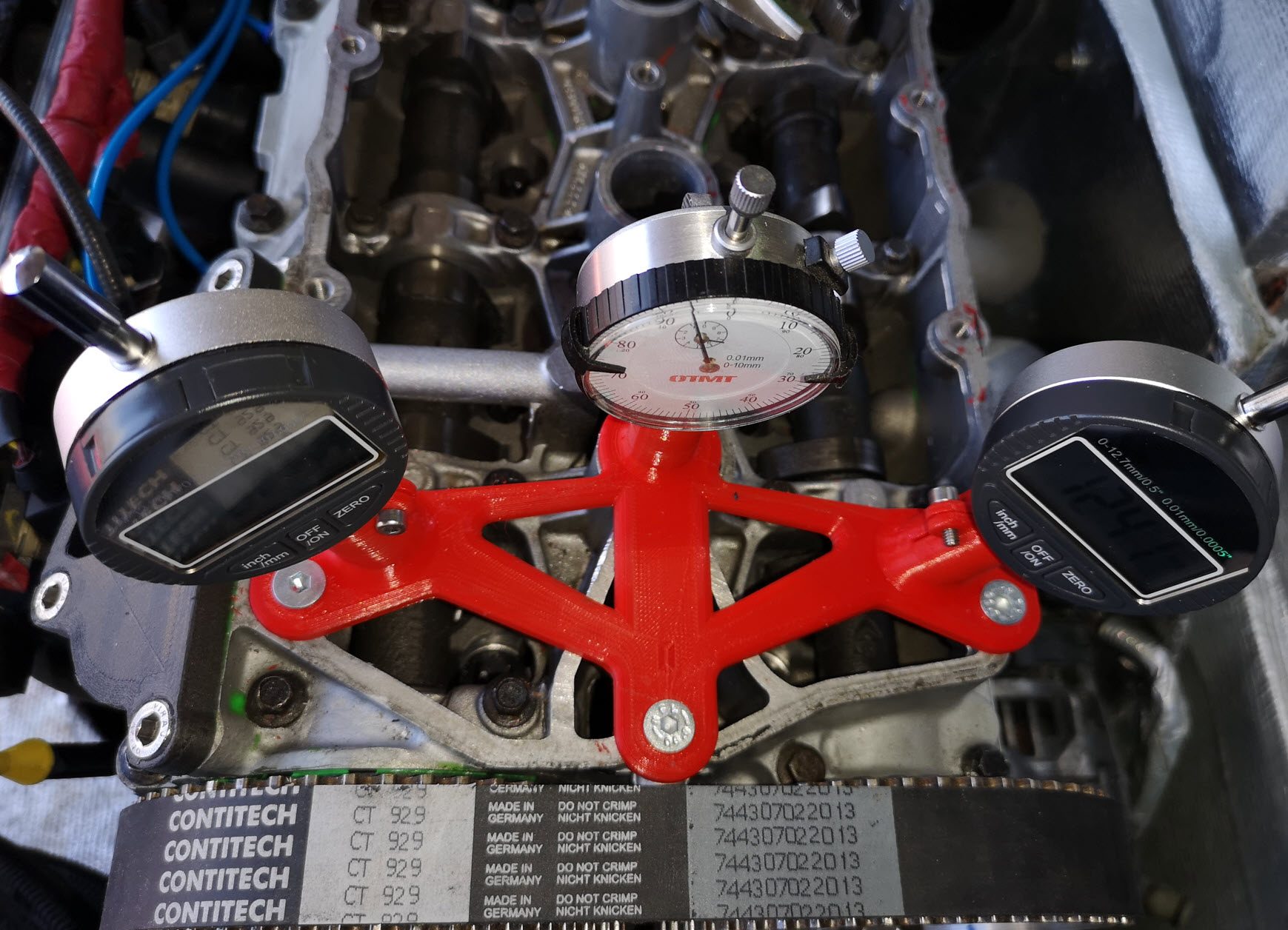

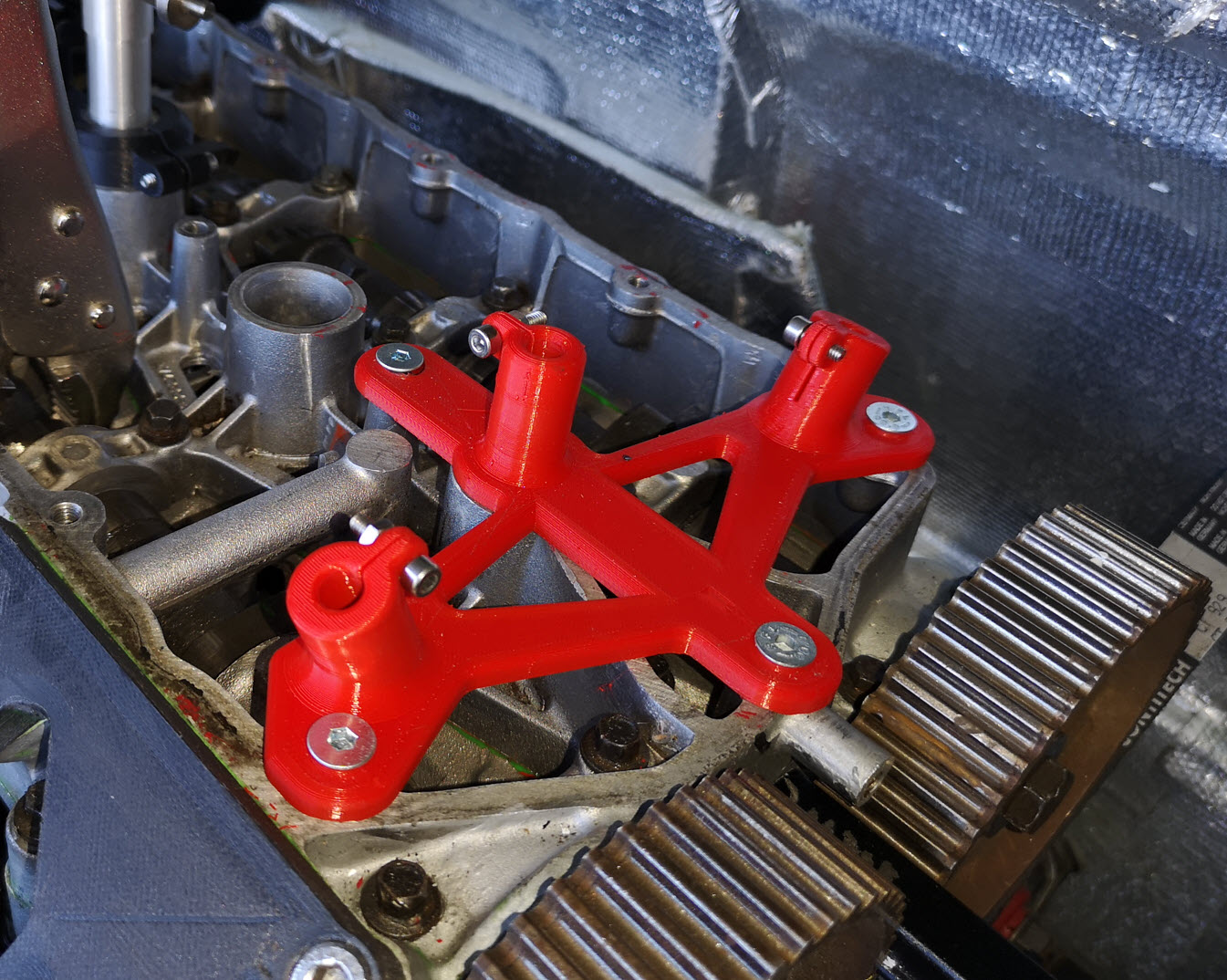

I picked up on this idea and designed a mounting bracket to accommodate 3 dial gauges.

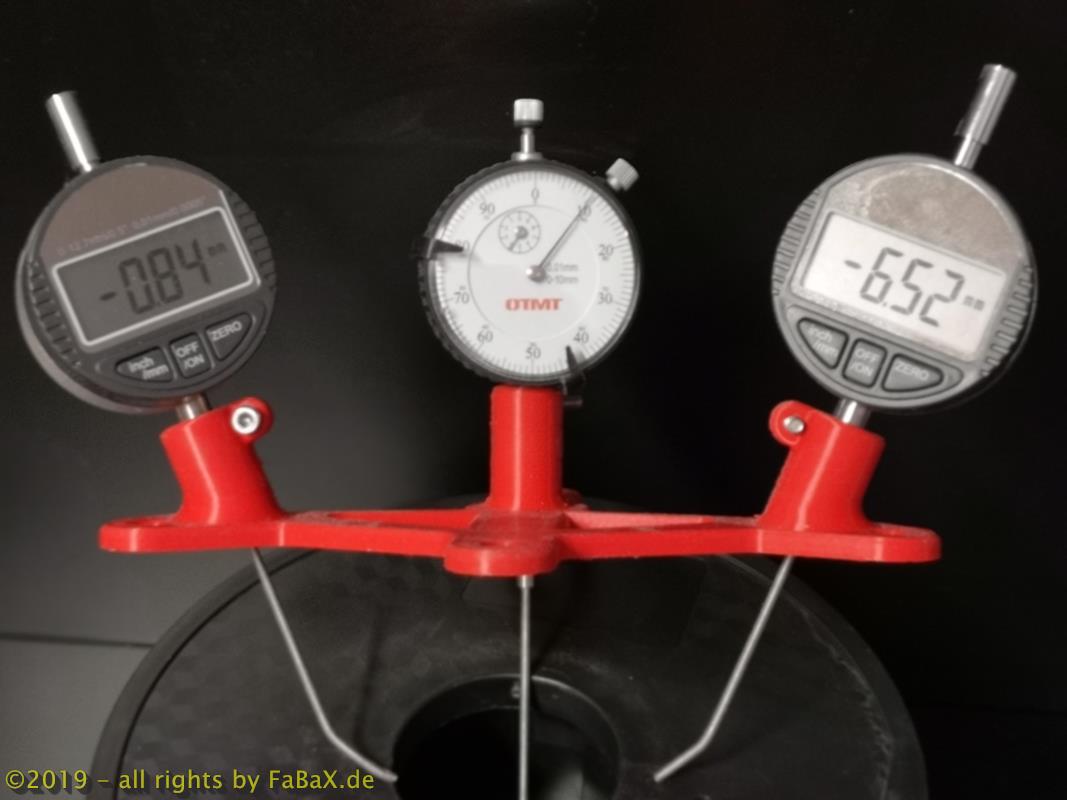

The ZIP file also contains construction instructions for the measuring probes required for the dial gauges.

The middle probe is for determining top dead center.
